MF induction rod heater
Time:2015-05-07    Views:

M.F. forging furnace is used for the heating of bars and rods larger than Φ12, the material can be steel, stainless steel, copper, brass ,aluminium and so on.  The heating can be the whole rod, end of the rod or middle part of the rod.

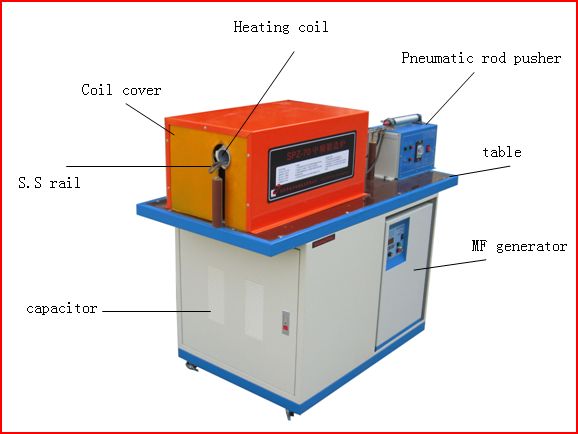

Structure of the M. F. forging furnace:

The furnace includes basically the SPZ medium frequency generator, the compensating cap, the working table, the heating coil, coil cover, rod feeder and so on.  For some applications, the infrared sensor, temperature controller and automatic rod feeding systems can also be included.
Main features of the M.F. forging furnace:
(1)  Wide frequency range from 1KHZ to 20KHZ,frequency can be designed to satisfy different size of the heated rods.
(2)  The heating coil can be 500mm to 1 meter long, several pieces are heated at the same time to make sure the penetrating effect.
(3)  In the continuous heating process, the load inside the coil is stable , thus to overcome the great heating power change caused by the great change of the load during the heating course from cool rod to 1100℃ rod.  The actual power can reach more than 85% of the rated power of the machine.
(4)  Even when heating non-ferrous metals like copper or aluminium, the actual power can also reach more than 85% of the rated power of the machine by design the coil properly and match the compensating cap correctly.  3.5KG copper or brass can be heated to 700℃ per kilowatt in an hour.
(5)  Compared with SCR medium frequency generator, our M.F. forging furnace is more efficient and consumes about 15—20% less power.
Main models and heating ability:


Max. Input Power

Heating ability of normal material

Steel or S.S to 1100

Copper or brass to 700

SPZ-35 forging furnace


1.25 KG/min

1.75 KG/min

SPZ-45 forging furnace


1.67 KG/min

2.33 KG/min

SPZ-70 forging furnace


2.5 KG/min

3.5 KG/min

SPZ-90 forging furnace


3.33 KG/min

4.67 KG/min

SPZ-110 forging furnace


4.17 KG/min

5.83 KG/min

SPZ-160 forging furnace


5.83 KG/min


SPZ-240 forging furnace


9.2 KG/min


SPZ-300 forging furnace


11.25 KG/min
